Testing with Replay

Introduction

Replay is a program that takes a dataflash log file and replays it through any branch’s code allowing for state estimation issues to be analyzed using that branch’s code instead of the code used while generating the dataflash log.

Note

The log structure of the firmware used to create the log and the branch to be tested with it must be the same.

Note

In order to use Replay the log must be generated with LOG_REPLAY set to 1. And it is preferred to also have LOG_DISARMED also set to 1, to obtain the most information in the log.

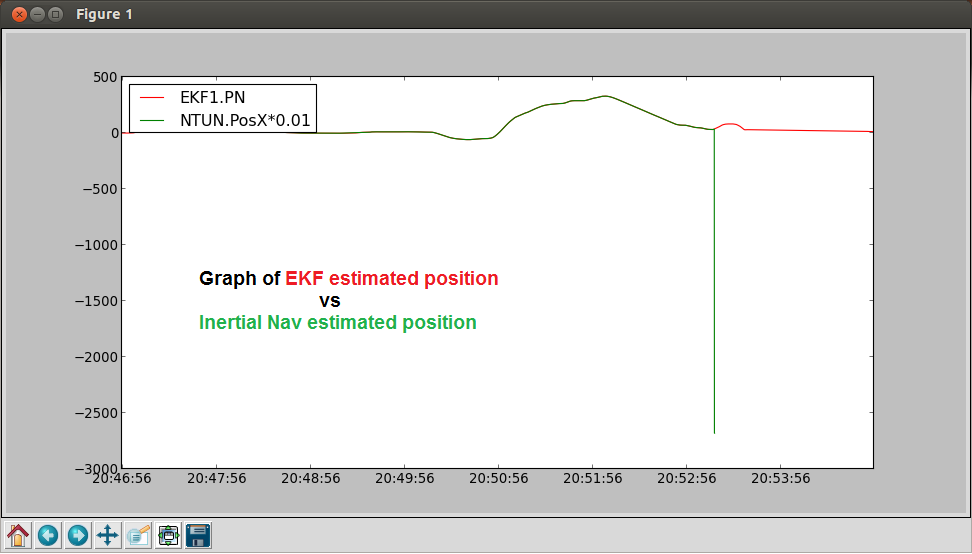

../_images/Replay_EKFVsINAV.png

Building Replay

On your Linux or Ubuntu machine, from the root directory of an ArduPilot repository, using the branch you wish to replay the log through:

./waf configure --board=sitl --debug   //--debug is optional but allows using a debugger, if desired when analyzing issues
./waf replay

This will create a file called build/sitl/tool/Replay.

Using Replay

Display the Replay help instructions:

build/sitl/tool/Replay -h

Run a log through Replay to generate the plot and EKF data files:

build/sitl/tool/Replay MyLogFile.BIN

This will produce an output file xxx.BIN in the folder “./logs”, which will be the highest numbered log since it was just created.

Use MAVExplorer to graph the data. Both the original and Replay generated EKF messages will be included in the log data. For example, instead of possible graphs for IMU0 and IMU1’s EKF2- NKF2 message items: “NKF2, NKF2[0], and NKF2[1]”, there will also be “NKF2[100] and NKF2][101]” graph groups for the replay generated log messages.

Note

if using WSL, do not reference the log file via the external Windows WSL path since this will be extremely slow. Instead copy the log from the Windows file system directly into the WSL environment and execute Replay on it within that environment.

Changing parameters

Simulation parameters may be changed before replaying a log using the option: -parm NAME=VALUE (this sets the parameter NAME to VALUE). The parameters which may be edited are those listed by running the “param show <param-name>” command in SITL.

For example, to change the EKF I gate value to 1,000, run the command:

build/sitl/tools/Replay --parm EK2_VEL_I_GATE=1000 log_1.bin

Checking that new code has no effect on the EKF

When modifying the EKF code it can be useful to confirm your changes have no impact on the EKF’s estimates in some situations. This can be done by following the procedure below:

  • Start SITL with a vehicle of your choice, using “master”

  • Set these parameters and optionally some sensor position parameters (i.e GPS_POS_X,Y,Z) to non-zero values

param set LOG_DISARMED 1
param set LOG_REPLAY 1
param set GPS_POS1_Y 0.1
param set SIM_GPS_POS1_Y 0.1

  • Fly the vehicle for a short flight which includes fast forward flight and turns

  • Land the vehicle and download the onboard log (i.e. 00000001.BIN)

  • Move the log to a safe place

mv logs/00000001.BIN test-00000001.BIN

  • Checkout the new branch and build Replay (see “Building Replay” above)

git checkout <new-branch>
cd ardupilot
./waf replay

  • Process the onboard log with Replay (see “Using Replay” above)

build/sitl/tools/Replay test-00000001.BIN

  • Move the resulting log file to a safe place. This new log contains all the information of the original log plus what the new-branch’s EKF would have produced

mv logs/00000001.BIN replay-00000001.BIN

  • Use the check_replay.py script to check that there are no changes:

../Tools/Replay/check_replay.py replay-00000001.BIN

  • if nothing has changed a message like below will be displayed

Processing log replay-00000001.BIN
Processed 30166/30166 messages, 0 errors
Passed

Ensuring EKF changes have had no effect on its output

Often changes to the EKF are expected to have no functional change. Refactoring, removing dead code, adding comments, rearranging parameters, changing function names and the like.

If you are making such a change, Tools/Replay/check_replay_branch.py is provided to ensure your current branch does not change the EKF’s output, as tested by the autotest suite’s Replay tests.

It:

  • generates a Replayable log on the master branch

  • compiles and runs Replay on your branch

  • uses Tools/Replay/check_replay.py to ensure the EKF output has not changed

e.g.

pbarker@bluebottle:~/rc/ardupilot(pr/move-gsf-logging-ekf2)$ ./Tools/Replay/check_replay_branch.py
chdir (/home/pbarker/rc/ardupilot)
lckfile='/home/pbarker/rc/buildlogs/autotest.lck'
step=build.Copter
step=test.Copter.Replay
Running: ("git rev-parse HEAD") in (/home/pbarker/rc/ardupilot)
>>>> RUNNING STEP: build.Copter at Tue Dec  1 13:26:32 2020
Running: ("/bin/rm -f logs/*.BIN logs/LASTLOG.TXT") in (.)
'build' finished successfully (4m26.874s)
.
.
.
>>>> PASSED STEP: build.Copter at Tue Dec  1 13:31:03 2020
>>>> RUNNING STEP: test.Copter.Replay at Tue Dec  1 13:31:03 2020
Running: ("/bin/rm -f logs/*.BIN logs/LASTLOG.TXT") in (.)
step=test.Copter.Replay
.
.
.
AT-0298.3: Stopping SITL
>>>> PASSED STEP: test.Copter.Replay at Tue Dec  1 13:36:01 2020
Processing log logs/00000004.BIN
Processed 66495/66495 messages, 0 errors
pbarker@bluebottle:~/rc/ardupilot(pr/move-gsf-logging-ekf2)$
